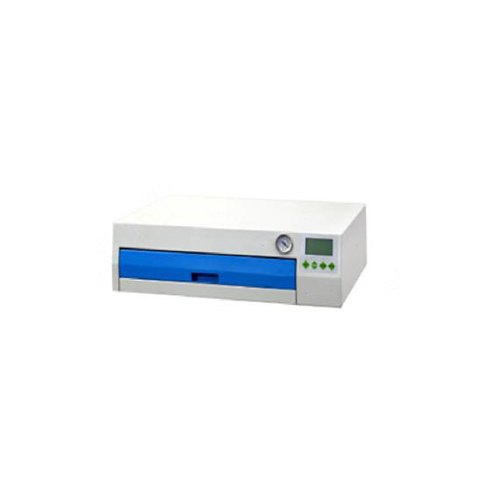

MRPCB38 UV Double Sided Exposure Machine Educational Equipment Technical Vocational Training Equipment and Simulator PCB Processing Equipment Used for exposure of single-sided and double-sided circuit boards covered with photosensitive film materials, suitable for the photochemical transfer production process of various PCBs, nameplates, hollow parts and other products. * Minimum resolution line width: 0.075mm (3mil) * Minimum resolution line spacing width: 30.075mm (3mil) * Maximum exposure format: 305mm×230mm * Light source: imported UV-A band ultraviolet lamp * Wavelength: 365nm * Production capacity: 120 pieces/H * Vacuum pressure: ≤0.6MPa * Translucent material: industrial special translucent film * The device has a built-in microcontroller and can be programmed * The device is equipped with an LCD screen interactive interface and a buzzer alarm * Power supply: 220VAC/50Hz * Power: 0.2kW * Weight: 15kg * Dimensions (length/width/height): 650mm×480mm×200mm
