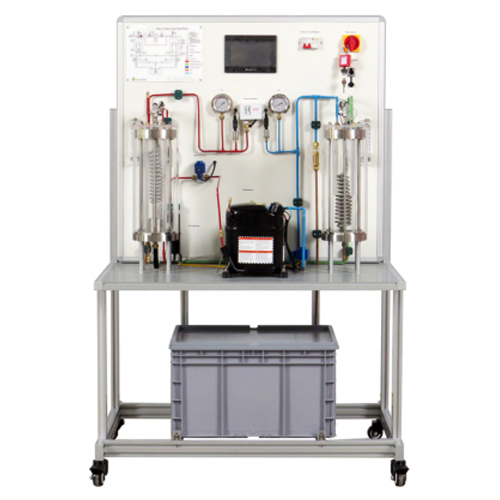

MR065R Refrigeration Cycle Test Bench Equipment Educational Technology Vocational Training Equipment Air Conditioner Trainer 1. Product Introduction 1.1 Product Description This training device is used to study the refrigeration compression cycle system. By using different throttling devices to observe the characteristics of the equipment under refrigeration conditions, the state of each position of the refrigerant is studied. 1.2 Product Features The training platform adopts an aluminum chassis frame structure, which is simple and firm. While reducing the overall weight of the equipment, it ensures the overall strength of the equipment. There are 4 universal wheels installed at the bottom, which can be easily moved. The refrigeration cycle pipeline is laid on the equipment installation plate, and the high and low temperature areas are painted with different colors for easy observation and distinction. 2. Technical specifications 2.1 Technical parameters Power supply parameters: single-phase three-wire AC 220V ±5% 50Hz 2.2 Dimensions and weight Dimensions: 1150mmX800mmX1900mm Weight: 157kg 3. Product component names and function introduction 3.1 Product main part No. Name Qty 1 Refrigeration components 1 2 Operation panel 1 3 Water tank 1 4 Holder 1 5 Universal wheels 4 3.2 Product Refrigeration Components No. Name Qty 1 High pressure gauge 1 2 High pressure gauge sensor 1 3 Mechanical pressure protection switch 1 4 Low pressure gauge sensor 1 5 Low pressure gauge 1 6 Filter 1 7 Flow meter 2 8 Compressor 1 3.3 Product operation panel No. Name Qty 1 HMI 1 2 2P circuit breaker with leakage protection 1 3 Main switch 1 4 Communication port 1 3.4 Product accessories No. Name Qty 1 Network cable 2 meters 1 2 USB 1 4. Product teaching experiment list (see the experiment guide for details) (1) Refrigeration cycle test experiment (2) Data monitoring experiment through software
