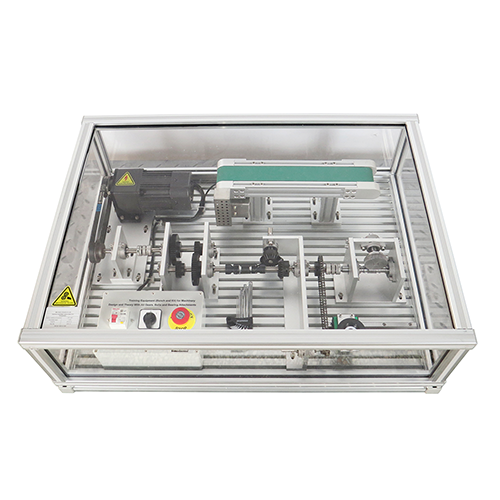

Training Equipment for Machinery Designand Theory With All Gears Beltsand Bearing Attachments Educational Equipment Vocational Training Mechanical Trainer
No.MR064ME
MR064ME Training Equipment for Machinery Designand Theory With All Gears Beltsand Bearing Attachments Educational Equipment Vocational Training Mechanical Trainer
MR064ME Training Equipment for Machinery Designand Theory With All Gears Beltsand Bearing Attachments Educational Equipment Vocational Training Mechanical Trainer I. Product Introduction 1.1 Product Description Through practical training, you can master the changes in transmission direction and transmission speed in chain transmission, belt transmission, gear transmission, coupling and combined transmission in mechanical transmission, and better understand the principles of mechanical transmission. 1.2 Product Features The training table uses an aluminum profile base plate structure, and the components are installed on the base plate in an orderly manner. Modular structure, complete transmission structure, can be combined at will, and realize a variety of mechanical transmission, II. Technical Specifications (1) Input power: single-phase, three-wire, 220V±10%, 50Hz (2) Motor power: 90W (3) Dimensions: 850mm×630mm×285mm (4) Machine weight: 40kg (5) Working conditions: ambient temperature -10℃ to +40℃, relative humidity <85% (25℃) III. Product Composition Number Name 1 V-belt 2 Transmission 3 Coupling 4 Drive belt motor switch 5 Power switch 6 Drive motor switch 7 Emergency stop switch 8 Universal joint 9 Bevel gear 10 Chain 11 Rack and pinion 12 Worm 13 Conveyor belt 14 Hexagon socket (set) IV.Experiment list Experiment 1 V-belt drive experiment Experiment 2 Chain drive Experiment 3 Cylindrical gear transmission Experiment 4 Bevel gear transmission Experiment 5 Rack and pinion transmission Experiment 6 Worm gear transmission
