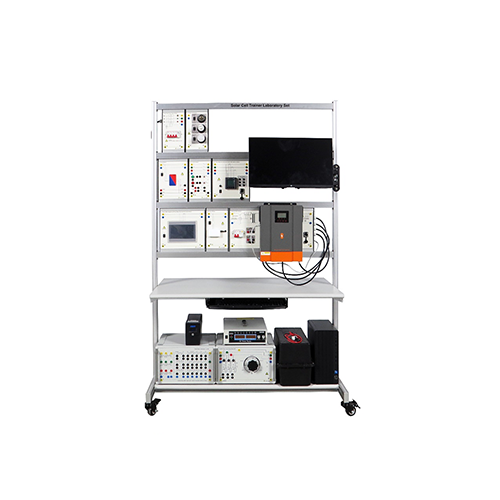

MR1021R Solar Cell Trainer Laboratory Set Educational Equipment Vocational Training Equipment Solar PV Trainer 1. Product Introduction 1.1 Product Description The equipment includes conversion module, power module, measurement module, and signal conversion module for easy experimentation. In addition to the basic components, the computer is also equipped with an uninterruptible power supply to protect the host. The equipment is equipped with software to obtain real-time data for easy observation. 1.2 Product Features 1. The training workbench adopts a sturdy aluminum column frame structure and is equipped with a measuring instrument and a loading module for installation. 2. The training power box is integrated into the workbench, with wheels at the bottom for easy movement during the experiment. 3. Equipped with PC and power-off protection measures to prevent data loss. 4. Each unit of the training workbench is equipped with wheels at the bottom for easy movement during the experiment. 5. The design is sturdy and durable to ensure long-term use. 6. The training workbench is equipped with a complete set of experimental circuits and components that can be used to combine and perform various training exercises. 7. The training workbench is equipped with a safety protection system. 2. Technical Specifications 2.1 Technical Parameters Hybrid Inverter System Voltage: 12V System Power: 1200VA Input Voltage (AC): Single-phase three-wire 90V~280V Conversion Time: 10ms, Output Voltage (AC): Single-phase three-wire 230V Output Frequency: 50/60 Hz Battery Voltage (DC): 10V~15V MPPT Charge Controller (DC): 15V~80V Battery 122Ah, 12V Variable Ohm Load Three-phase 1kW, can be used in parallel, series, star and triangle circuits 24V controlled power switch module rated working current 16A Bulb Load Single-phase three-wire 230V (incandescent bulb 25W, energy-saving lamp 4W, LED4W) Programmable Power Supply Open Circuit Voltage: 80 V Closed Circuit Current: 40 A Power Output: 1000 W 2.2 Dimensions and weight Dimensions: 1320mm*820mm*2150mm Weight: 202kg 3. Product component names and function introduction 3.1 Product main part No Name Qty 1 Main power module 1 2 Light bulb load 1 3 DC power supply 1 4 Switch module 1 5 Three-phase measurement system module 1 6 Display screen 1 7 Voltage and current measurement system 1 8 Switch module 1 9 Hybrid inverter module 1 10 Battery 1 11 Host 1 3.2 Product chassis No Name Qty 1 Programmable power supply 1 2 UPS uninterruptible power supply 1 3 three-phase transformer chassis 1 4 three-phase variable load chassis 1 3.3 Product accessories No Name Qty 1 Socket strip 1 2 Waterproof plug 1 3 Fuse (5A, 1A) 5 4 Battery 1 5 USB flash drive 1 6 U-shaped bridge 7 7 Power cord 4 8 Plug 1 9 Mouse 1 10 Network cable 5 11 Multimeter 1 12 K4 test line (yellow) 5 13 K4 test line (blue) 5 14 K4 test line (black) 5 15 K4 test line (green) 5 16 K4 test line (two-color) 5 17 K4 test line (red) 5 4. Product teaching experiment list (1) Load box experiment (2) Hybrid power generation experiment (3) Battery and photovoltaic panel hybrid power supply experiment
