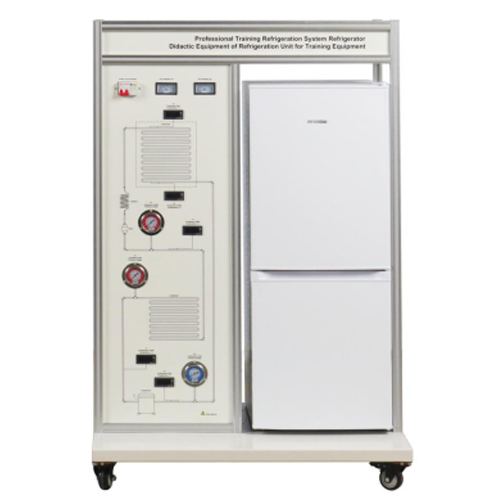

Professional Training Refrigeration System Refrigerator Didactic Equipment of Refrigeration Unit for Training Equipment Teaching Equipment Vocational Education Equipment Refrigeration Trainer
No.MR077R
MR077R Professional Training Refrigeration System Refrigerator Didactic Equipment of Refrigeration Unit for Training Equipment Teaching Equipment Vocational Education Equipment Refrigeration Trainer
Power Supply
Single-phase three-wire AC220V, 50Hz
Operating Environment Requirements
Ambient temperature 10℃～30℃; Relative humidity < 75% (25℃).
MR077R Professional Training Refrigeration System Refrigerator Didactic Equipment of Refrigeration Unit for Training Equipment Teaching Equipment Vocational Education Equipment Refrigeration Trainer 1. Product Introduction 1.1 Product Description This teaching equipment is a practical training platform specifically designed for teaching refrigeration and air conditioning technology. It realistically reproduces the core structure of typical vapor compression refrigeration systems such as household or commercial refrigerators and small cold storage units, and integrates teaching functions such as data measurement and system monitoring. Its core objective is to enable students to comprehensively master the core skills of refrigeration system principles, installation, debugging, operation, and maintenance. 1.2 Product Features 1. The equipment possesses excellent electrical safety performance, employing superior protective design and reliable grounding. 2. The product utilizes corrosion-resistant, robust materials, ensuring durability and significantly extending its service life. 2. Technical Specifications 2.1 Technical Parameters Power Supply: Single-phase three-wire AC220V, 50Hz Operating Environment Requirements: Ambient temperature 10℃～30℃; Relative humidity < 75% (25℃). 2.2 Dimensions and Weight Dimensions: 1000mm×800mm×1510mm Weight: Approx. 100kg 3. Product Component Names and Functions 3.1 Main Body of the Product No. Name Qty 1 Voltmeter 1 2 Circuit breaker 1 3 Ammeter 1 4 Thermometer 5 5 High voltage gauge 2 6 Low voltage gauge 1 7 wheel 4 8 Refrigerator compartment 1 9 Freezer compartment 1 3.2 Product Accessories No. Name Qty 1 Mercury Thermometer 1 4. Product Teaching Experiment List (1) Refrigerator Cooling Process Principle
