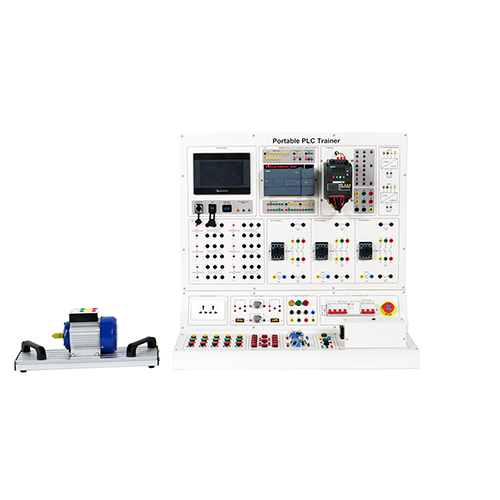

MR508E Portable PLC Trainer Vocational Training Equipment Classroom Training Set Electrical Workbench 1. Product Introduction 1.1 Product Description The product consists of a touch screen, PLC module, frequency converter, intermediate relay, AC contactor, temperature transmitter, motor, etc. It can simulate the operation process of the PLC system, so that students have a preliminary and intuitive understanding of PLC control and frequency converter, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessment of related majors in higher vocational colleges, junior colleges, secondary vocational schools, and technical schools. 1.2 Product Features 1. The equipment adopts a sheet metal frame structure, and the measuring instruments and load modules are installed on the sheet metal frame. The training power supply is built-in and integrated. Each unit is flexible, easy to use, and not easy to damage. 2. The experimental circuits and devices are complete and can be used in combination to complete the training content of various courses. 3. The equipment has a good safety protection system. 2. Technical specifications 2.1 Technical parameters Equipment power supply: AC 110V Siemens: 6ES7, 215-1HG40-0XB0, CPU 1215C DC/DC/RLY Siemens: 6ES7, 223-1PH32-0XB0, SM1223DI 8×24VDC, DQ 8×RLY Temperature transmitter (4-20mA): pt100 DC24V power supply, -50-150℃ Temperature transmitter (0-10V): pt100 DC24V power supply, -50-150℃ Three-phase squirrel cage asynchronous motor: △/Y voltage: 380/660v, 60Hz, 1500rpm, 180W 2.2 Dimensions and weight Dimensions: 870mm×470mm×900mm Weight: ＜61kg 3. Product component names and function introduction 3.1 Product main body No. Name 1 Motor 2 Equipment body 3.2 Product electrical part No. Name 1 Touch screen module 2 PLC Module 3 Inverter module 4 Current and voltage module input 5 Intermediate relay 6 AC contactor 7 Socket 8 DC output 9 Power output module 10 Circuit breaker module 11 Button module 12 Indicator module 13 Temperature transmitter module 14 Heating module 3.3 Product accessories No. Name 1 4mm safety electrical cable(red) 2 4mm safety electrical cable(red) 3 4mm safety electrical cable(red)） 4 4mm safety electrical cable(red) 5 4mm safety electrical cable(red) 6 4mm safety electrical cable(red) 7 2mm safety electrical cable (red) 8 2mm safety electrical cable (red) 9 2mm safety electrical cable (red) 10 2mm safety electrical cable (red) 11 2mm safety electrical cable (red) 12 Industrial waterproof plug (female) 13 Temperature Sensor 14 USB data cable 15 Network cable 16 USB flash drive 4. Product Configuration List No. Name Qty 1 Touch Screen 1 2 Ethernet port 1 3 USB口 1 4 RS232/RS485 1 5 PLC 1 6 PLC expansion module 1 7 Inverter 1 8 4-20mA to 0-10V 1 9 0-10V to 4-20mA 1 10 Intermediate relay 6 11 AC contactor 3 12 Socket 1 13 24V adjustable 0-10V output 1 14 24V adjustable 4-20mA output 1 15 Indicator Light 18 16 Circuit breaker 2 17 Emergency stop knob 1 18 Button 15 19 (0-10V) Temperature Transmitter 1 20 (4-20mA) Temperature Transmitter 1 21 Knob 1 5. Product teaching experiment list (1) PLC module and button control motor speed experiment through inverter (2) PLC module and button control motor forward and reverse rotation experiment through contactor (3) Temperature sensor single test experiment (4) Equipment PID experiment
