Name: Pneumatic And Electro Pneumatic Bench Teaching Equipment Industrial Training Equipment Electro Pneumatic Trainer
Brand: Minrry
SKU: MR004M

Description

MR004M Pneumatic And Electro Pneumatic Bench Teaching Equipment Industrial Training Equipment Electro Pneumatic Trainer

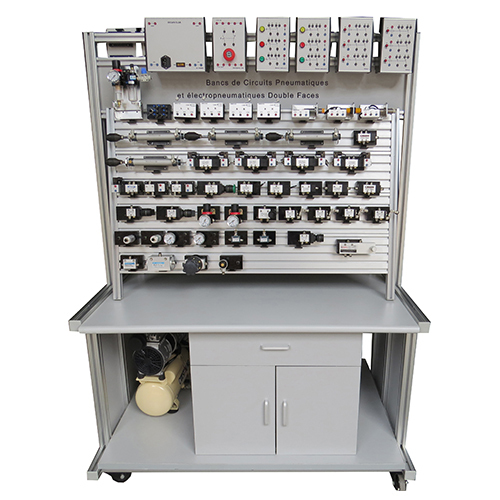

Pneumatic and electro-pneumatic bench Double-sided mobile workstation allows the assembly and operation of the various components without the use of tools (components equipped with quick assembly system)
- 1* Rolling table dimension between length 1200 mm, height 1700 mm and depth 800 mm minimum.
- 1* extruded and adonized aluminum plate of dimension between 1080 mm length and 680 mm depth minimum with the possibility of fixing the electrical components on both sides.
- 2* cabinet with a minimum of four drawers and locks
- 1* cable guide
- 1 x power supply unit for mounting frame 220V AC- 24 VDC/ 4A minimum with minimum 6 outputs
- 1x silent lubricated compressor for classroom use: protected by pressure switch and safety valve
-Supply voltage 230V/50HZ
- Operating pressure 7 bar minimum
- Suction flow rate 40 L/MIN minimum
- Tank volume 9 L minimum
- Outlet with pressure regulator, pressure gauge and quick coupler
Pre-actuator for manual and mechanical pressurization
- 2 push-button operated 3/2 NC spool valves
- 2 Push-button operated 3/2 NO dispensers
- 1 3/2 NC valve operated by emergency stop button
- 4 Distributors FC 3/2 NC roller-operated
- 2 NC 3/2 directional control valves operated by retractable roller
- 1 Switch operated 3/2 NC bistable valve
- 1 Push button operated 5/2 directional control valve
- 1 5/2-way valve with two-position selector switch
- 1 Closed center 5/3 valve operated by hook-in lever
Pneumatically operated pre-actuator
- 1 Pneumatically operated 3/2 NC monostable spool valve, 3/2 NC.
- 2 Pneumatically operated 5/2 monostable spool valves
- 2 Pneumatically operated 5/2 bistable valves

Signal processing, flow control and blocking
- 1 logic gate "OR".
- 1 "OR" circuit selector switch
- 1 "AND" logic gate
- 1 "AND" circuit selector switch
- 2 unidirectional flow throttles
- 1 Quick exhaust valve
- 1 Adjustable pneumatic timer with positive output
- 2 Flow regulators with pilot operated check valve
- 1 bi-directional flow restrictor
- 1 Sequence valve
Cylinders
- 2 Single-acting spring return cylinders
- 1 Double-acting cylinder with magnetic piston and elastic damping
- Double acting magnetic piston cylinder with adjustable pneumatic damping
Electro dispensers
- 1 Solenoid valve, 3/2-way monostable NC (24 VDC coil with LED indicator)
- 1 Solenoid valve, 3/2 bistable (24 VDC coil with LED indicator)
- 2 Solenoid valves, 5/2 bistable (24 VDC coil with LED indicator)
- 2 Solenoid valves, 5/2 monostable (24 VDC coil with LED indicator)
- 1 Solenoid valve, 5/3 closed center (24 VDC coil with LED indicator)
- 1 Vacuum generator by suction effect with suction cup
- Control modules/sensors
- 1 ON/OFF switch
- 1 Emergency stop push button (electric)
- 1 Set of electrical inputs (Box with 3 NO-NC pushbuttons)
- 1 Set of 3 relays (3 NO-3 NC, 24VDC coil)
- 1 Indicator (Indicators, ringer)
- 1 Set of 2 timer relays (2 NO- 2 NC)
- 1 Electrical connection terminal block
- 4 Magnetic detectors type Reed
- 2 Static magnetic detectors
- 1 Inductive sensor
- 1 Capacitive sensor
- 1 Photoelectric detector
- 4 Electric limit switch
- 1 Electrical contact pressure switch
- Accessories
- Set of 10 "T" Connectors Ø 4mm
- Set of 10 plastic caps Ø 4mm
- Set of 10 "Y" connectors Ø 4mm
- 1x 4 mm safety laboratory cable set (color red and blue) consisting of at least 80 cables
- all pneumatic components must be equipped with Ø 4mm quick couplings
