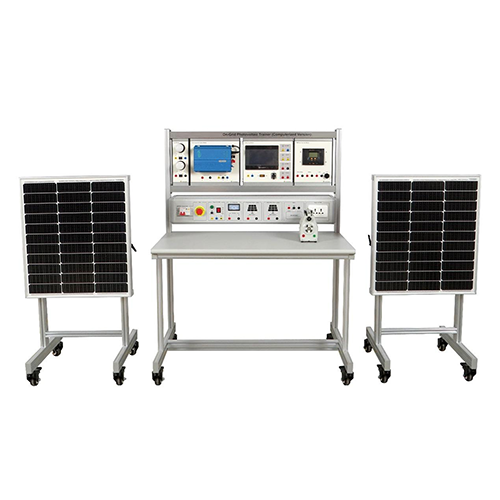

MR1025R On-Grid Photovoltaic Trainer Vocational Training Tools And Equipment University Equipment Photovoltaic Generator Trainer 1.Product Introduction 1.1 Product Description The whole process of photovoltaic power generation grid-connected operation is fully restored, so that operators can not only master the basic principles of power generation, but also deeply understand advanced knowledge such as grid interaction and energy dispatching, providing more comprehensive practical training support for the design and application of new energy power systems. 1.2 Product Features 1. Grid-connected coverage, in-depth teaching upgrade Grid-connected system, students can analyze the working principle, efficiency and applicable scenarios of the mode. Supports real grid interaction logic demonstrations such as "self-generation and self-use" and "surplus power grid connection", close to the actual operation of photovoltaic power stations. 2. Safe grid-connected design The grid-connected inverter has anti-reverse flow protection, overvoltage/undervoltage protection, and anti-islanding protection to ensure the safety of grid simulation experiments. Emergency stop switch, circuit breaker and graded fuse (5A/10A/20A) are retained, and double protection is adapted to high-power grid-connected scenarios. 3. Strong compatibility and flexible expansion Connect the grid simulation interface through the K4 test line, and the grid-connected function expansion can be realized without additional modification. 4. Comply with industry standards Grid-connected parameters (voltage, frequency, harmonics) strictly match grid specifications to help students master the actual grid-connected technical requirements. 2. Technical specifications Solar photovoltaic panel: DC12V/60W (monocrystalline) 670mm*590mm Equipment power supply: single-phase, three-wire AC220V Portable load: 10Ω/4A Dimensions: 1060mm*630mm*1380mm Weight: ≤300kg 3. Product component names and function introduction 3.1 Product main body No. Name Qty 1 Photovoltaic panel 2 2 Equipment module part 1 3 Equipment power box 1 4 Portable load 1 3.2 Product module part No, Name Qty 1 Solar controller module 1 2 Grid-connected module 1 3 AC measurement module 1 4 Load module 1 5 DC measurement module 1 3.3 Product power box No. Name Qty 1 Circuit breaker unit 1 2 Emergency stop switch unit 1 3 PV 1 output unit 1 4 PV 2 output unit 1 5 Battery unit 1 6 DC voltmeter unit 1 7 Socket 1 8 Single-phase three-wire AC220V output unit 1 3.4 Product accessories No. Name Qty 1 Cable 2 2 Handheld light sensor 1 3 USB cable 1 4 Network cable 1 5 4mm safety electrical cable (two-color) 5 6 safety electrical cable (red) 6 7 safety electrical cable(yellow) 5 8 safety electrical cable(black) 6 9 safety electrical cable (blue) 5 10 Fuse (20A) 3 11 Fuse (10A) 3 12 Fuse (5A) 3 13 Charger 1 14 USB flash drive 1 4. Product teaching experiment list (1) Power generation experiment at different light angles (2) Photovoltaic panel series connection experiment (3) Photovoltaic panel parallel connection experiment (4) Battery charging experiment (charger) (5) Battery grid connection experiment (6) Photovoltaic grid connection experiment
