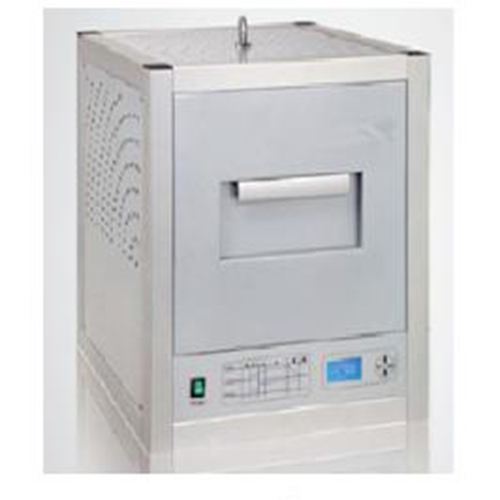

MRPCB39 Multilayer Board Press Machine Vocational Training Tools and Equipment Demo Model PCB Laboratory Equipment Function: Used for pressing multilayer circuit boards of different types and materials. Built-in microcontroller controls the whole process of hot pressing of multilayer circuit boards; the process adopts efficient heating and heat dissipation design, and the heating and cooling time are short; the entire pressing plate can be evenly pressed to ensure that the internal structure of the multilayer PCB after pressing is uniform and consistent, and long-term stability without delamination. Performance parameters: * Maximum wiring size: 285mm×205mm * Maximum lamination area: 305mm×230mm * Can press two multilayer boards at the same time * Maximum temperature: 300℃ * Number of circuit board layers: 8 layers (related to materials and design) * Lamination time: about 90 minutes * Maximum lamination pressure: 300N/cm² (20 tons) * Temperature, pressure, and time parameters can be adjusted through the navigation key * Process parameters are displayed on the LCD screen * Built-in multiple lamination programs * Power supply: 220VAC/50Hz * Power: 2.1kW * Weight: 180kg * Dimensions (length/width/height): 550mm×550mm×700mm
