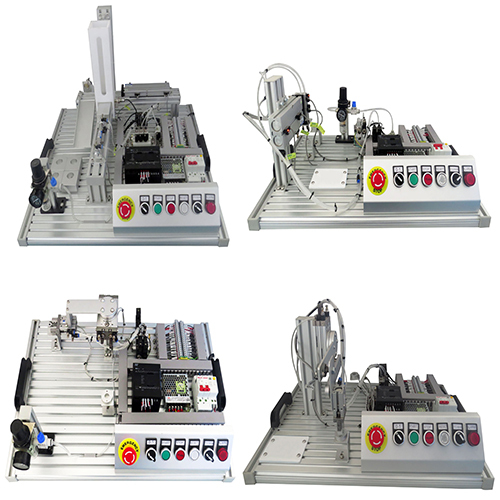

MR143M Mechatronics Trainer Educational Equipment Technical Teaching Equipment Mechatronics Training Equipment table of Contents 1. Product Overview 1.1 Overview 1.2 Features 2. Performance parameters 3. Equipment composition 4. Practical training content can be completed 5. Matters needing attention 6. Experimental content Experiment 1 Sports Training Experiment 2 Sports Training Experiment 3 Sports Training Experiment 4 Sports Training 1. Product Overview 1.1 Overview This training device system contains 4 motion control systems, so that students have a preliminary intuitive understanding of motion control. Through relevant experiments, the students' corresponding knowledge and skills are cultivated, which is suitable for the teaching and skill training assessment of related majors in vocational colleges, vocational schools, secondary vocational schools and technical schools. 1.2 Features (1) The training platform adopts aluminum profile and sheet metal structure, and the structural substrate is installed, which is convenient to use and not easy to damage. (2) The experimental circuit and device configuration are complete, and the practical training content of various courses is completed. 2. Performance parameters (1) Input power; AC220V±5% (2) Dimensions: 680mm×600mm×420mm Dimensions: 680mm×450mm×300mm Dimensions: 580mm×450mm×300mm Dimensions: 680mm×450mm×200mm (3) Weight: <300kg (4) Working conditions: ambient temperature -10℃～+40℃ relative humidity ＜85% (25℃)
