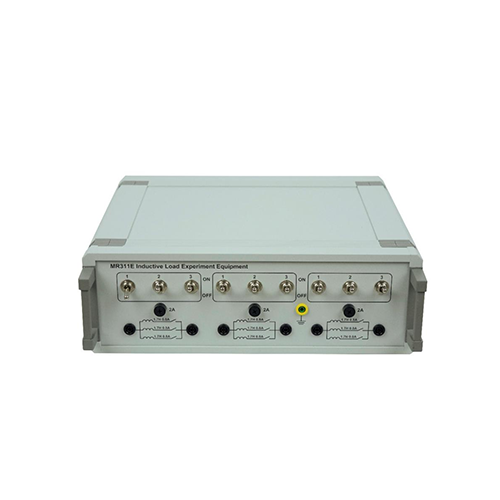

MR311E Inductive Load Experiment Equipment Vocational Training Equipment University Educational Equipment Electrical Machine I. Product Overview 1.2Overview The training device contains several inductive loads (parameters are 1.7H, 0.8A), and is equipped with safety terminals and switches for switching, which improves the safety of the equipment. It is suitable for teaching and skills training and assessment of related majors in vocational, vocational and secondary vocational schools. 1.2 Features (1) The experimental device adopts a sheet metal structure, which is simple and elegant as a whole. There are feet installed on the bottom for flexible movement. Easy to use and not easy to damage. (2) The motor is equipped with safety terminals, which is safe and reliable. (3) The training platform has a good safety protection system. II. Performance Parameters Input power supply: three-phase five-wire 380V or single-phase three-wire 220V, 50Hz Size: 430mmx460mmx265mm Capacity: <2KVA Weight: <200Kg Ambient temperature: -10℃～+40℃ Relative humidity: <85% (25℃) III. Components List and Detailed Introduction 3.1 Main part Number Name Features 1 Band switch Used to control inductive loads on and off 2 Fuse wire When the rated current value of the fuse is exceeded, the fuse will automatically blow to protect the circuit. 3 Inductive load output terminal Electrical connection components used to connect wires or other electronic components in an electrical circuit 4 Power input terminal Used to provide power 5 Rocker switch Used to control the start and stop of the fan 6 Fan Used for inductive load box cooling 3.2 Equipment configuration list Number Name Quantity 1 Band switch 9 2 Fuse wire 3 3 Inductive load output terminal 6 4 Rocker switch 1 5 Fan 3 6 Ground terminal 1 3.3 Accessories Number Name Quantity 1 Power cable 1 2 4mm electrical cables 7 3 Fuse wire (2A) 5 IV. Experimental List Experiment 1 Principle and characteristics experiment of inductive load with delta connection Experiment 2 Principle and Characteristics Experiment of Star Connection Inductive Load Experiment 3 Three-phase inductive load teaching equipment test experiment Experiment 4 Kirchhoff's Law Analysis Experiment
