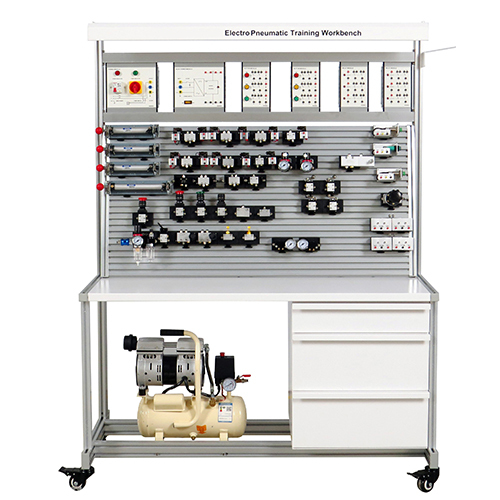

1.1 Product Description
The electronic control training workbench is designed for "pneumatic training" and meets the requirements of modern pneumatic transmission. Students can learn basic pneumatic circuit control knowledge and exercise their hands-on ability. The pneumatic trainer combines electrical and mechanical transmission knowledge.
Through this training workbench, students can master the structure of pneumatic components, pneumatic circuit control theory, pneumatic circuit design, and the hands-on ability of the pneumatic training workbench.
1.2 Product Features
(1) The experimental workbench is mainly composed of training workbench, pneumatic components, and electrical modules.
(2) Equipped with all commonly used pneumatic components: Each pneumatic component is equipped with a mounting base, which can be easily and arbitrarily placed on the aluminum alloy profile panel.
2. Technical specifications
2.1 Basic technical parameters
Working power supply    Single-phase three-wire AC 220V/ 50Hz
2.2 Equipment appearance parameters
Dimensions    1300mm*530mm*1740mm
Weight    ≤400kgo Pneumatic Training Workbench Technical Skills Training Equipment Demonstrational Equipment Pneumatic Training Equipment

3. Product introduction
3.1 Product main part
No.    Name    Function Introduction    Qty
1    Equipment module part    See 3.5.1 for details    1
2    Pneumatic component part    See 3.5.2 for details    1
3    Air pump    Provide a stable air source    1
4    Cabinet    Place accessories    1
5    Back panel    Fix pneumatic components    1
3.2 Product module section
No.    Name    Qty
1    Power module    1
2    DC power module    1
3    Button module    2
4    Relay module    2
3.3 Pneumatic part of the product
No.    Name    Qty
1    Double-acting cylinder    3
2    Single-acting cylinder    1
3    Three-position five-way solenoid reversing valve (center leakage)    1
4    Three-position five-way solenoid reversing valve (center seal)    1
5    Three-position five-way solenoid reversing valve (center pressure type)    1
6    Two-position three-way single solenoid valve    1
7    Two-position three-way single solenoid valve    1
8    Mushroom head button valve    1
9    Two-position five-way handle reversing valve    2
10    Single air control two-position three-way    1
11    Single air control two-position five-way    1
12    Dual air control two-position five-way    1
13    Dual air control two-position three-way    1
14    Two-unit    1
15    Check valve    2
16    Pressure gauge    2
17    Check throttle valve    2
18    Pressure reducing valve    2
19    3/2 short handle manual valve    1
20    Two-way rolling cam type mechanical valve two-position three-way    4
21    Flat head button type two-position three-way    1
22    Two-position three-way pneumatic delay valve    1
23    Sequence valve    1
24    Shuttle valve or gate type shuttle valve    1
25    Dual pressure valve    1
26    Quick exhaust valve    1
27    Micro switch    4
28    Two-position five-way double solenoid reversing valve    1
29    Rotary button valve    2
30    Two-position five-way single solenoid valve    1
31    Air compressor    1
32    Photoelectric sensor    1
33    Capacitive sensor    1
34    Inductive sensor    1
35    Pneumatic multi-pipeline exhaust AL-6 components    1
3.4 Product accessories
No.    Name    Function Introduction    Qty
1    2mm electrical safety cable(100cm yellow)    For circuit connection, yellow mark.    20
2    2mm electrical safety cable(100cm black)    For circuit connection, black mark.    20
3    2mm electrical safety cable(100cm red)    For circuit connection, red mark.    20
4    Trachea    For gas line connection.    60
5    Raw tape    For sealing threaded interface to prevent air leakage.    5
6    Trachea scissors TK3    For cutting gas pipe to ensure smooth cut.    1
7    Extended hexagon wrench (9 pieces)    For installing and removing hexagon socket screws.    1
8    Pneumatic three-way connector (white)    For branch connection of gas line.    6
9    Pneumatic three-way connector (black)    For branch connection of gas line.    6
3.5 Components Introduction
3.5.1 Module Introduction
Component 1: Power Module
Parameters:
Input: single-phase three-wire AC220V
Output: single-phase three-wire AC220V (regulated output)
Purpose: provide stable AC220V power supply for equipment;
Component 2: DC Power Module
Parameters:
Input: single-phase two-wire AC220V (50/60Hz)
Output: DC24V
Purpose: power supply for low-voltage DC equipment
Component 3: Button Module
Parameters:
Illuminated button (red), self-reset, voltage DC24V
Ordinary button (green), self-locking (holding), DC24V
Illuminated button (yellow), self-reset, DC24V
Purpose: used for emergency stop, instantaneous action control, start/stop, state retention control, with light design to indicate the operating status of the equipment
Component 4: Relay Module
Parameters: DC 24V, red LED
Purpose: control the on and off of the circuit, the small red light indicates the relay closure state.

3.5.2 Introduction to pneumatic components
Component 1: Double-acting cylinder
Parameter: MAL20*100cm
Purpose: bidirectional motion is achieved through air pressure control, suitable for occasions requiring reciprocating motion.
Component 2: Single-acting cylinder
Parameter: MSAL20*100cm
Purpose: unidirectional motion is achieved through air pressure control, spring reset, suitable for simple push-pull actions.
Component 3: Three-position five-way solenoid reversing valve (mid-position leakage)
Parameter: 4V130E06B / DC 24V power supply
Purpose: used to control the on-off and direction switching of the air circuit, the mid-position leakage type is suitable for specific working conditions.
Component 4: Three-position five-way solenoid reversing valve (mid-position sealing)
Parameter: 4V130C06B / DC 24V power supply
Purpose: mid-position closed type solenoid valve, used to maintain the cylinder position.
Component 5: Three-position five-way solenoid reversing valve (medium pressure type)
Parameter: 4V130P06 / DC 24V power supply
Purpose: Middle-position pressurized solenoid valve, suitable for occasions requiring middle-position pressurization.
Component 6: Two-position three-way single solenoid control solenoid valve (normally closed)
Parameter: 3V11006NC
Purpose: Used to control the on-off of the gas circuit. The normally closed type closes the gas circuit when the power is off.
Component 7: Two-position three-way single solenoid control solenoid valve (normally open)
Parameter: 3V11006NO
Purpose: Used to control the on-off of the gas circuit. The normally open type keeps the gas circuit unobstructed when the power is off.
Component 8: Mushroom head button valve
Parameter: M3PM11006
Purpose: Manually control the on-off of the gas circuit, often used for emergency stop or manual operation.
Component 9: Two-position five-way handle reversing valve
Parameter: 4H21006
Purpose: Manually switch the direction of the gas circuit through the handle, suitable for simple control systems.
Component 10: Single air control two-position three-way valve
Parameter: 3A11006NC
Purpose: Control the on and off of the air circuit through the air pressure signal, normally closed type.
Component 11: Single air control two-position five-way valve
Parameter: 4A11006
Purpose: Control the direction switching of the air circuit through the air pressure signal.
Component 12: Double air control two-position five-way valve
Parameter: 4A12006
Purpose: Control the direction switching of the air circuit through the double air pressure signal.
Component 13: Double air control two-position three-way valve
Parameter: 3A12006
Purpose: Control the on and off of the air circuit through the double air pressure signal.
Component 14: Duplex valve
Parameter: AFC2000
Purpose: Used to filter and adjust the air pressure to ensure the stable operation of the pneumatic system.
Component 15: One-way valve
Parameter: S6A1/1
Purpose: Allow the air flow to pass in one direction to prevent backflow.
Component 16: Pressure gauge
Parameter: Axial pressure gauge Y4001MPa
Purpose: Display system air pressure for monitoring and debugging.
Component 17: One-way throttle valve
Parameter: KLA06
Purpose: Control air flow speed and direction to achieve cylinder speed regulation.
Component 18: Pressure reducing valve
Parameter: AR2000
Purpose: Regulate and stabilize the pressure in the air circuit.
Component 19: 3/2 short handle manual valve
Parameter: M3Y11006
Purpose: Manually control the on and off of the air circuit, suitable for simple operation.
Component 20: Bidirectional rolling cam type mechanical valve (two-position three-way)
Parameter: M3R11006
Purpose: Control the on and off of the air circuit through a mechanical cam, suitable for automation equipment.
Component 21: Flat head button type two-position three-way
Parameter: M3PF11006R
Purpose: Manually control the on and off of the air circuit through a button.
Component 22: Two-position three-way pneumatic delay valve
Parameter: XQ230450
Purpose: Delay control through air pressure signal.
Component 23: Sequence valve
Parameter: KPSAG1/8
Purpose: Control the on and off of the air circuit according to the set sequence.
Component 24: Shuttle valve (or gate shuttle valve)
Parameter: ST02
Purpose: Realize the logical "or" function and select one of the two air sources for output.
Component 25: Double pressure valve
Parameter: ST06
Purpose: Realize the logical "and" function and output only when the two air sources supply air at the same time.
Component 26: Quick exhaust valve
Parameter: QE02
Purpose: Quickly exhaust the gas in the cylinder to improve the response speed.
Component 27: Micro switch
Parameter: QZ1703
Purpose: Detect mechanical position or action and output electrical signals.
Component 28: Two-position five-way double solenoid reversing valve
Parameters: 4V12006B / DC 24V power supply
Purpose: Realize the switching of the air path direction through dual solenoid control.
Component 29: Rotary button valve
Parameters: M3PL11006R
Purpose: Manually control the on and off of the air path by rotating the button.
Component 30: Two-position five-way single solenoid control solenoid valve
Parameters: 4V11006
Purpose: Realize the switching of the air path direction through single solenoid control.
Component 31: Air compressor
Parameters: 550W, 8L
Purpose: Provide the air source required by the pneumatic system.
Component 32: Photoelectric sensor
Parameters: Diameter 18mm
Purpose: Detect the position or movement state of the object and output electrical signals.
Component 33: Capacitive sensor
Parameters: Diameter 18mm
Purpose: Detect the position or material of the object through capacitance changes.
Component 34: Inductive sensor
Parameters: diameter 18mm
Purpose: Detect the position of metal objects by inductance changes.
Component 35: Pneumatic multi-pipe gas exhaust AL6 assembly
Purpose: Used for the distribution and management of multiple gas lines.
5. Product teaching experiment list
(1) Two-position five-way solenoid valve control cylinder (momentary) test
(2) Two-position five-way solenoid valve control cylinder (self-locking) test
(3) Two-position five-way manual reversing valve control cylinder
(4) Roller-type lever mechanical valve on-off test
(5) Two-position three-way delay valve test
(6) One-way sequence valve test
(7) Shuttle valve test
(8) Double pressure valve working process
(9) Self-locking push button valve test
(10) Self-reset push button valve test
