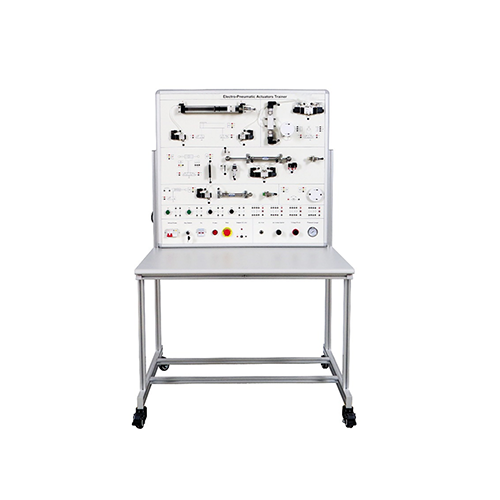

Name: Electro Pneumatic Actuators Trainer Vocational Training Equipment and Simulator Educational Equipment Pneumatic Trainer
Brand: Minrry
SKU: MR127M
Availability: InStock
Rating: 5 (1 reviews)

Description

MR127M Electro Pneumatic Actuators Trainer Vocational Training Equipment and Simulator Educational Equipment Pneumatic Trainer
1.Product Overview
1.1 Product Description
It consists of an electric actuator, a pneumatic actuator, a pneumatic component group and a sensor. Through the trainer, you can become familiar with the basic usage of a single component. Understand and design experiments to achieve different purposes by cooperating between different components.
Through the trainer, you can master its principles and control methods and cultivate the corresponding knowledge and skills of testers. It is suitable for teaching and skill training assessment of related majors
1.2 Product Features
1. No special installation requirements and power interface are required
2. Stable operation, more reliable and durable during use due to simpler gas circuit
3. Fast response speed, the response speed can reach millisecond level within the controllable range
4. Good reliability
2.Performance Parameter
2.1 Technical Parameters
Single electric control two-position three-way normally open electronic valve: 3v110-06, DC24
Swing pneumatic motor: CRB2BS40-180S
Solenoid valve: 4V220-08, DC24
Pneumatic throttle valve: SL4-M5
Double-rod double-acting cylinder: MID20X100SLB
Single-acting cylinder: MSA16x50SCALB pressure reducing valve
Knob-type manual valve: M3HS110-06
Pressure gauge: Y-40, 0-1MPA
Switching power supply: JM-120W-24V, input AC110-220V, output DC24V, 5A
Capacitive proximity switch: SRY18-08NA, NPN normally open, 1.5M
Intermediate relay: YJ4N-GS, DC24V, coil voltage DC24V, current 5A
Inductive proximity switch: adjustable SJY18-08NA, 10-30v, NPN, normally open, 1.5M SN 8MM
Roller micro switch: QZ-1703 380V15A
Proximity switch/photoelectric switch: SGY18-D30NA DC10-30v normally open NPN
Photoelectric position sensor: detection distance 2-20cm, output signal 0-10V, power supply voltage DC24V, M18
Matrix fiber optic sensor: SJ-DT-GQ10
Fiber optic amplifier: KS-V81N, NPN type
DC reduction motor: ZGA37RG, 24v, 20rpm
M8 diffuse reflection photoelectric switch: NPN normally open, E3HT-DS3E1 (3CM is not adjustable)
Pressure switch: SY-S60-012 (1-12bar)
2.2 Dimensions and Weight
Dimensions: 1060mm×810mm×1710mm
Weight: <100kg

3.Product component names and function introduction
3.1 Product main part
No. Name
1 Rodless double-acting cylinder
2 Single-electric 3/2 way normally open solenoid valve
3 Photoelectric position sensor
4 Pressure switch
5 Pneumatic motor
6 5/2 way dual-electric solenoid valve
7 Matrix fiber optic sensor
8 Fiber optic amplifier
9 Diffuse reflection photoelectric switch
10 Rod double-acting cylinder
11 5/3 way dual-electric solenoid valve
12 Roller micro switch
13 Inductive proximity switch
14 3/2 single-electric solenoid valve
15 Single-acting cylinder
16 Capacitive proximity sensor
17 DC reduction motor
18 Self-reset button
19 Self-locking button
20 Intermediate relay
21 Circuit breaker
22 Key switch
23 Fuse
24 Power indicator light
25 Emergency stop button
26 24V output terminal
27 Air inlet
28 Air inlet switch
29 Air pressure adjustment knob
30 Barometer
3.2 Product accessories
No. Name
1 100CM 2mm electrical cable (black)
2 100CM 2mm electrical cable (red)
3 100CM 2mm electrical cable (yellow)
4 Fuse
5 Tracheal scissors
6 50CM 2mm electrical cable (black)
4.Product Configuration List
No. Name Quantity
1 Rodless double-acting cylinder 1
2 Single-electric 3/2 way normally open solenoid valve 1
3 Photoelectric position sensor 1
4 Pressure switch 1
5 5/2 way dual-electric solenoid valve 1
6 Pneumatic motor 1
7 Matrix fiber optic sensor 1
8 Fiber optic amplifier 1
9 Diffuse reflection photoelectric switch 1
10 Rod double-acting cylinder 1
11 5/3 way dual-electric solenoid valve 1
12 Roller micro switch 1
13 Inductive proximity switch 1
14 3/2 way single-electric solenoid valve 1
15 Single-acting cylinder 1
16 Capacitive proximity sensor 1
17 DC reduction motor 1
18 Intermediate relay 1
19 Self-reset button 1
20 Self-locking button 1
21 Circuit breaker 1
22 Key switch 1
23 Fuse 1
24 Power indicator light 1
25 Emergency stop button 1
26 24V output terminal 1
27 Air inlet 1
28 Air inlet switch 1
29 Air pressure adjustment knob 1
30 Barometer 1
31 100CM 2mm electrical cable (black) 10
32 100CM 2mm electrical cable (red) 10
33 100CM 2mm electrical cable (yellow) 10
34 Fuse tube 5
35 Trachea scissors 1
36 50CM 2mm electrical cable (black) 10
5.Experiment list
Experiment 1 Rodless double-acting cylinder test experiment
Experiment 2 Pneumatic motor connection test experiment
Experiment 3 Double-acting cylinder test experiment
Experiment 4 Single-acting cylinder test experiment
