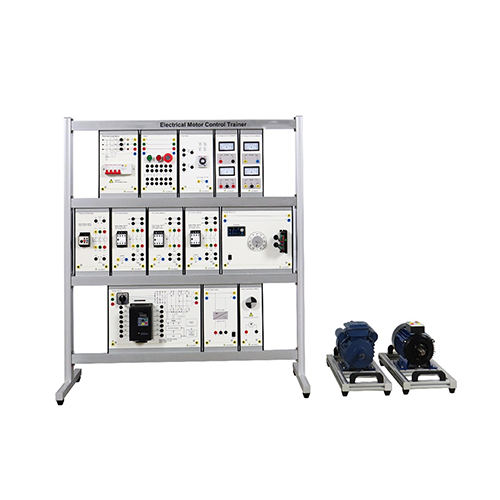

MR513E Electrical Motor Control Trainer Educational Equipment Technical Skills Training Equipment Electrical Machine I.Product Overview 1.1 Overview The device includes a three-phase circuit breaker module, an AC contactor module, a time relay module, a thermal overload relay module, a frequency converter, a DC power supply, a DC reduction motor, a measuring unit, a motor, etc. It can meet the needs of different experimental teaching. It adopts a modular structure, which is easy to operate and maintain. 1.2 Features (1) It can meet the needs of experimental teaching, and the depth and breadth of the experimental content can be flexibly adjusted according to needs. (2) From dedicated power supplies and other experimental components to dedicated experimental connection wires, the performance and specifications of the supporting components are closely matched with the needs of the experiment (3) Each measuring instrument has a reliable protection function, which is safe and reliable to use and ensure the safety of the operator (4) It is equipped with protective devices such as overload protection, emergency stop buttons, etc. to ensure safe operation II.Performance Parameter 2.1 Technical Parameters Equipment power supply: AC380V Inverter: 1.5KW; Input: three-phase AC380V; Output: three-phase AC380V DC voltmeter: 50V DC ammeter: 3A AC voltmeter: 500V AC ammeter: 5A DC power supply: input AC220V; output DC24V DC reduction motor: input DC24V Three-phase squirrel cage asynchronous motor: △/Y voltage; 380/660v, 50Hz, 1500rpm, 1.1KW Single-phase single capacitor induction motor: 550W/220VAC, 1500 rpm, with starting capacitor 2.2 Dimensions and Weight Dimensions: 1100mm x 500mm x 1250mm Weight: <82kg III.Components List and Detailed Introduction 3.1 Main Part Number Name 1 Equipment body 2 Single-phase single-capacitor induction motor 3 Three-phase squirrel cage asynchronous motor 3.2 Electrical Parts Number Name 1 Three-phase circuit breaker module 2 AC contactor module 3 Time relay module 4 Thermal overload relay module 5 Inverter module 6 Switch module 7 AC voltage and current meter module 8 DC voltage and current meter module 9 DC power supply module 10 DC reduction motor module 11 DC stepper motor module 3.3 Accessories Part Number Name 1 Fuse (3A) 2 Fuse (5A) 3 Fuse (10A) 4 4mm electrical cable (yellow) 5 4mm electrical cable (green) 6 4mm electrical cable (red) 7 4mm electrical cable (blue) 8 4mm electrical cable (black) 9 4mm electrical cable (two-color) IV.Product Configuration List No. Name QYT 1 Three-phase circuit breaker module 1 2 AC contactor module 3 3 Time relay module 1 4 Thermal overload relay module 1 5 Inverter module 1 6 Switch module 1 7 AC voltage and current meter module 1 8 DC voltage and current meter module 1 9 DC power supply module 1 10 DC reduction motor module 1 11 DC stepper motor module 1 12 Fuse (3A) 10 13 Fuse (5A) 10 14 Fuse (10A) 10 15 4mm electrical cable (yellow) 15 16 4mm electrical cable (green) 15 17 4mm electrical cable (red) 15 18 4mm electrical cable (blue) 10 19 4mm electrical cable (black) 10 20 4mm electrical cable (two-color) 5 21 Three-phase squirrel cage asynchronous motor 1 22 Single-phase single capacitor induction motor 1 V.Experiment List Experiment 1 Inverter control motor operation Experiment 2 Three-phase motor operation test Experiment 3 Three-phase motor forward and reverse test Experiment 4 DC motor forward and reverse test Experiment 5 Stepper motor operation test Experiment 6 Single-phase single-capacitor motor operation test
