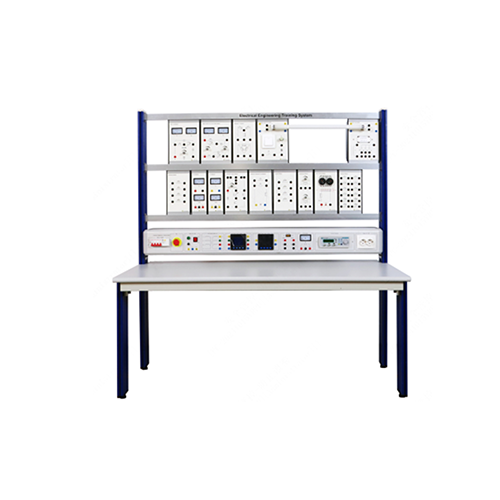

MR512E Electrical Engineering Training System Didactic Equipment Demonstrational Equipment Electrical Engineering Lab I.Product Overview 1.1 Overview With good expansion capability, this trainer can also be expanded to other training contents. Schematic diagrams and symbols are drawn on the front of the hanging box. The experimental circuit is designed in unit circuit mode. Each unit circuit is based on the basic circuit. Students can practice various training contents on this device. 1.2 Features 1. This product adopts advanced design, and the experimental panel can be replaced freely, and students can replace it according to different training requirements. 2. The experimental instrument has the characteristics of high precision. The power and instruments used in this product are equipped with a reliable personal safety protection system. II.Performance Parameter 2.1 Technical Parameters Power supply parameters: three-phase AC 220V/±10% 2.2 Dimensions and Weight Dimensions: 1650mm x 1000mm x 950mm Weight: <140kg III.Components List and Detailed Introduction 3.1 Main Part Number Name 1 Module part 2 Power box part 3 Desktop 3.2 Electrical Parts Number Name 1 4P circuit breaker 2 Emergency stop 3 Output control part 4 Transformer 5 Three-phase multi-function meter 6 Single-phase multi-function meter 7 DC output (can be connected in series) 8 DC ammeter 9 Signal generator 10 Socket 3.3 Product module parts Number Name 1 Ohm's law module 2 Resistor shunt/voltage divider module 3 Resistor star-delta module 4 Starter module 5 Lamp tube 6 Ballast module 7 Inductor module 8 DC voltage/current module 9 AC voltage/current module 10 Kirchhoff's law module 11 Parallel RLC module 12 Capacitor module 13 Potentiometer module 14 Right-hand rule module 15 Resistor module 3.4 Accessories Part Number Name 1 Insulation resistance meter megohmmeter 1000V 2 Digital multimeter UA9205 3 4mm electrical cable 1m double-ended yellow 4 4mm electrical cable 1m double-ended green 5 4mm electrical cable 1m double-ended red 6 4mm electrical cable 1m double-ended blue 7 4mm electrical cable 1m double-ended black 8 Fuse 5A 5*20 9 Fuse 1A 5*20 10 Fuse 0.1A 5*20 11 Fuse 0.3A 5*20 IV. Product Configuration List No. Name QYT 1 Ohm's law module 1 2 Resistor shunt/voltage divider module 1 3 Resistor star-delta module 1 4 Starter module 1 5 Lamp tube 1 6 Ballast module 1 7 Inductor module 1 8 DC voltage/current module 1 9 AC voltage/current module 1 10 Kirchhoff's law module 1 11 Parallel RLC module 1 12 Capacitor module 1 13 Potentiometer module 1 14 Right-hand rule module 1 15 Resistor module 1 16 Insulation resistance meter megohmmeter 1000V 1 17 Digital multimeter UA9205 1 18 4mm electrical cable 1 meter double-ended yellow 5 19 4mm electrical cable 1 meter double-ended green 5 20 4mm electrical cable 1 meter double-ended red 8 21 4mm electrical cable 1 meter double-ended blue 5 22 4mm electrical cable 1 meter double-ended black 8 23 Fuse 5A 5*20 5 24 Fuse 1A 5*20 5 25 Fuse 0.1A 5*20 5 26 Fuse 0.3A 5*20 5 V. Experiment List Experiment 1 Ohm's law verification experiment Experiment 2 Shunt/voltage division test experiment Experiment 3 Kirchhoff's law verification experiment Experiment 4 Right-hand rule law verification experiment Experiment 5 Lighting operation experiment Experiment 6 Resistance star-delta experiment
