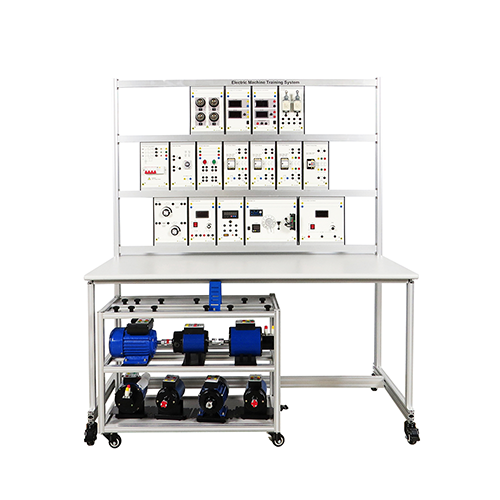

MR511E Electric Machine Training System Educational Laboratory School Equipment Technology Vocational Training 1. Product Introduction 1.1 Product Description The motor training system is suitable for experiments and tests in motor skill development and training. The motor training system usually covers various types of motors, such as DC motors, AC motors (including asynchronous motors, synchronous motors, etc.), stepper motors, servo motors, etc., as well as related electrical control equipment and testing instruments. This comprehensive design enables the system to meet the teaching and training needs at different levels. At the same time, the system adopts a modular design, which is easy to expand and upgrade, and can adapt to different teaching plans and project requirements. 1.2 Product Features The motor training system fully considers safety during design and adopts multiple protection mechanisms, such as overload protection, short circuit protection, leakage protection, etc. At the same time, the system is also equipped with complete safety operating procedures and warning signs to ensure the personal safety and equipment safety of students during the training process. 2. Technical specifications 2.1 Technical parameters Power supply parameters: Power supply: three-phase AC380V/50Hz 2.2 Dimensions and weight Dimensions: 1700mm×750mm×1900mm Weight: <232kg 3. Product component names and function introduction 3.1 Product main body No. Name 1 Frame 2 Motor 3 Universal wheel 4 Table 3.2 Product electrical part No. Name 1 Bulb load module 2 AC measurement module 3 DC measurement module 4 Limit switch module 5 Main power module 6 Timer module 7 Button module 8 AC contactor module 9 Thermal relay module 10 Rheostat module 11 DC motor control module 12 Tachometer module 13 Stepper motor module 14 Tachometer generator module 3.3 Product accessories NO. Name 1 Fuse 5A 5*20 2 Fuse 10A 5*20 3 4mm safety electrical cable 1m double-ended red 4 4mm safety electrical cable 1m double-ended green 5 4mm safety electrical cable 1m double-ended yellow 6 4mm safety electrical cable1m double-ended black 7 4mm safety electrical cable 1m double-ended blue 8 4mm safety electrical cable 1m double-ended two-color 9 Fuse 6A 5*20 10 Fuse 2A 5*20 11 Fuse 0.5A 5*20 4. Product Configuration List No. Name Qty 1 Bulb load module 1 2 AC measurement module 1 3 DC measurement module 1 4 Limit switch module 1 5 Main power module 1 6 Timer module 1 7 Button module 1 8 AC contactor module 3 9 Thermal relay module 1 10 Rheostat module 1 11 DC motor control module 1 12 Tachometer module 1 13 Stepper motor module 1 14 Speed generator module 1 15 Fuse 5A 5*20 10 16 Fuse 10A 5*20 10 17 4mm safety electrical cable 1m double ended red 15 18 4mm safety electrical cable 1m double ended green 15 19 4mm safety electrical cable 1m double ended yellow 15 20 4mm safety electrical cable 1m double ended black 15 21 4mm safety electrical cable 1m double ended blue 15 22 4mm safety electrical cable 1m double ended dual color 10 23 Fuse 6A 5*20 10 24 Fuse 2A 5*20 10 25 Fuse 0.5A 5*20 10 5. Product teaching experiment list (see the experiment guide for details) (1) Start-up control experiment (2) Self-locking control experiment (3) Interlocking control motor forward and reverse experiment (4) One-way synchronous generator experiment (5) Motor speed measurement experiment (6) AC voltage and current measurement experiment (7) DC motor drive experiment (8) Stepper motor test experiment
