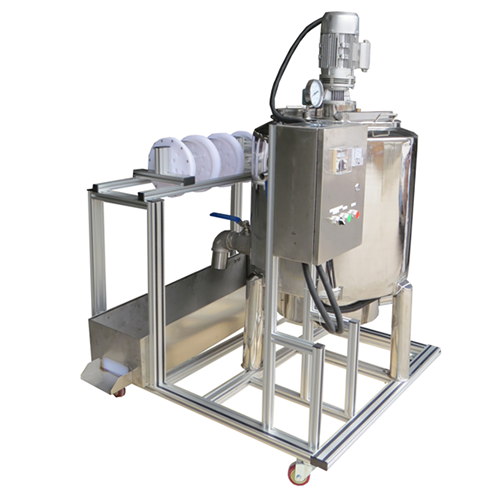

MR502 Educational Training Equipment Manufacture of Curd and Cheese School Educational Equipment Didactic Teaching Vocational Training 1 Product Overview 1.1 Overview This equipment includes necessary components used in cheese making process, with the equipment, you can make various cheeses. 1.2 Feature （1）The equipment’s frame is made of aluminum, and it adopted integrated installation. （2）The stainless steel fermentation tank has function of insulation and agitation. Molding tank can change soft and hard of cheese through adjusting pressure. 2 Technical Specifications （1）Input power supply: two-phase three-wire system, 220V±10% 50Hz （2）Dimension: 1200mm×1100mm×1600mm （3）Heating power: 6KW, Power of agitator: 0.75KW （4）Fermentation tank volume: 100L, Agitation speed: 36 rpm/min （5）Weight: ＜260kg （6）Operation conditions: Environment temperature -10℃～+40℃ 3 Product compositions 3.1 Fermentation tank The fermentation tank is made of stainless steel, its volume is 100L, it is equipped with double-deck jacket, inside is water jacket, so it can inject circulating water for constant heating or rapid cooling, outside is polyurethane insulation coating. Its top is with 2 feeding inlet’s renovates, and it is with feeding pipe joint for standby application, it can connect with external feeding pump. The bottom discharge hole is controlled by a large stainless steel ball valve. 3.2 Milk ejection channel It is made of stainless steel, equipped with filter screen outfall, and it is used to separating whey from compounds discharged from fermentation tank. 3.3 Extrusion forming equipment It adopts transparent acrylic molding mould and adjusts hardness of cheese through rotary lead screw, and then the cheese is shaping.
