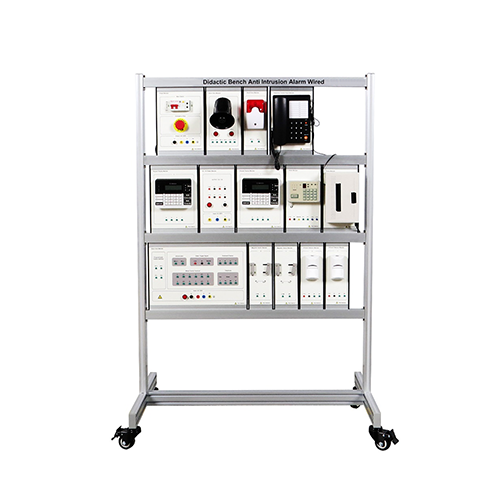

MR376E Didactic Bench Anti Intrusion Alarm Wired University Educational Equipment Didactique Materiels Building Training Equipment I.Product Overview 1.1 Overview This training device is an anti-theft system training device used in factories and homes. It can enable students to understand and master the working principle and system composition of the anti-theft alarm system, cultivate students' corresponding knowledge and skills, and is suitable for teaching and skill training assessment of relevant majors in higher vocational colleges, technical colleges, secondary vocational schools and technical schools. 1.2 Features (1) The training platform adopts an aluminum profile column hanging box structure, and the operation training platform is built with aluminum alloy. The bottom of the training platform is equipped with universal wheels, which can be flexibly moved. (2) The sensors are complete in variety and can be used in combination in a variety of ways. (3) The overall structure adopts an open and detachable type, which can easily replace modules. The module content is determined according to the principle of having productive functions and integrated learning functions, so that the required modules can be conveniently selected during teaching or competition. (4) The training and assessment device is a low-voltage component and is safe to use. (5) The training platform has a good safety protection system. II.Performance Parameter 2.1 Technical Parameters Power supply parameters: single-phase three-wire 220V±10% 50Hz Complete machine capacity: <1.0KVA Working environment conditions: ambient temperature -10℃～+40℃ Relative humidity <85% (25℃) 2.2 Dimensions and Weight Size: 1000mm×600mm×1500mm Weight: <60kg III.Components List and Detailed Introduction 3.1 Main Part Number Name 1 Aluminum alloy frame 2 Power module 3 Alarm speaker module 4 Keyboard display module 5 DC 12V power module 6 Alarm host module 7 Telephone 8 Small siren module 9 Telephone switch 10 Auto dialing module 11 Door magnetic sensor module 12 Wired infrared detector module 13 Universal caster 3.2 Accessories Number Name 1 2mm electrical cable red 2 2mm electrical cable yellow 3 2mm electrical cable black 4 2mm electrical cable green 5 4mm electrical cable yellow 6 4mm electrical cable two-color 7 4mm electrical cable blue 8 RJ11 to 2mm line 9 Fuse IV. Product Configuration List Number Name Quantity 1 Power module 1 2 DC 12V power module 1 3 Alarm host module 1 4 Keyboard display module 2 5 Alarm speaker module 1 6 Wired infrared detector module 2 7 Small siren module 1 8 Door magnetic sensor module 2 9 Auto dialing module 1 10 Phone 1 11 Phone switch 1 12 2mm electrical cable red 10 13 2mm electrical cable yellow (including 0.5m test line) 20 14 2mm electrical cable black 10 15 2mm electrical cable green 2 16 4mm electrical cable yellow 2 17 4mm electrical cable two-color 2 18 4mm electrical cable blue 2 19 RJ11 to 2mm line 1 20 Fuse 5 V.Experiment List Experiment 1 Wired infrared sensor switch characteristic experiment Experiment 2 Door magnetic sensor switch characteristic experiment Experiment 3 Alarm host function setting experiment Experiment 4 Various sensor probe access experiment Experiment 5 System comprehensive experiment
