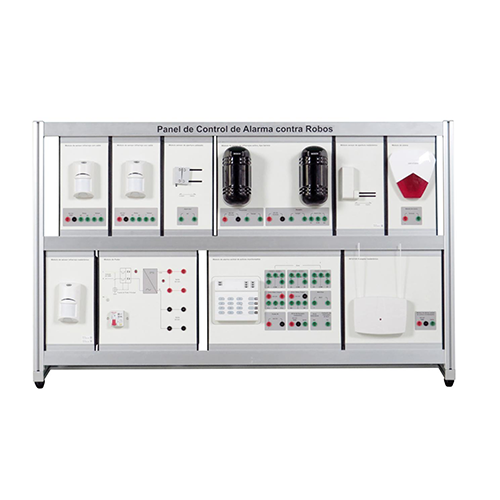

MR1004B Burglary Alarm Control Panel Educational Equipment Demonstrational Equipment Building Automation Trainer 1. Equipment Introduction 1.1 Overview This training device is an anti-theft system training device for factories and families. It can enable students to understand and master the working principle and system composition of the anti-theft alarm system, cultivate students' corresponding knowledge and skills, and is suitable for teaching and skill training assessment of related majors in higher vocational colleges, technical secondary schools, and technical schools. 1.2 Features (1) The training table adopts an aluminum profile column hanging box structure, and the operating training table is made of aluminum alloy. (2) A full range of sensors can be used in combination in various ways. (3) The overall structure adopts an open and disassembled type, which can facilitate the replacement of modules. The module content is determined according to the principle of having productive functions and comprehensive learning functions, which is convenient for selecting the required modules during teaching or competitions. (4) The training assessment device is a low-voltage component and is safe to use. (5) The training table has a good safety protection system. 2. Technical parameters Input power: single-phase three-wire, 220V±10%, 50Hz Weight: <60kg Working humidity: 0 to 95%, no condensation Working temperature: 0℃ to +49℃ 3. Component list and detailed introduction 3.1 Main part No. Name 1 Wired infrared sensor module 2 Wired door opening sensor module 3 Barrier type active infrared sensor module 4 Wireless door opening sensor module 5 Siren Module 6 Wireless infrared sensor module 7 Power Module 8 Central monitoring property alarm module 9 Wireless Receiver Module 3.2 Accessories No. Name 1 4mm safety electrical cable(black) 2 4mm safety electrical cable(red) 3 4mm safety electrical cable(green) 4 Remote Control 5 U-shaped bridge 4. Experiment list Experiment 1 Overall wiring of anti-theft control panel Experiment 2 Anti-theft host defense zone setting Experiment 3 Wired infrared sensor module test Experiment 4 Wireless infrared sensor module test Experiment 5 Wired door opening sensor module test Experiment 6 Wireless door opening sensor module test Experiment 7 Barrier type active infrared sensor module test
