Name: Basic Hydraulics Trainer Teaching Equipment Industrial Training Equipment Hydraulic Training Workbench
Brand: Minrry
SKU: MR128M
Availability: InStock
Rating: 5 (1 reviews)

Description

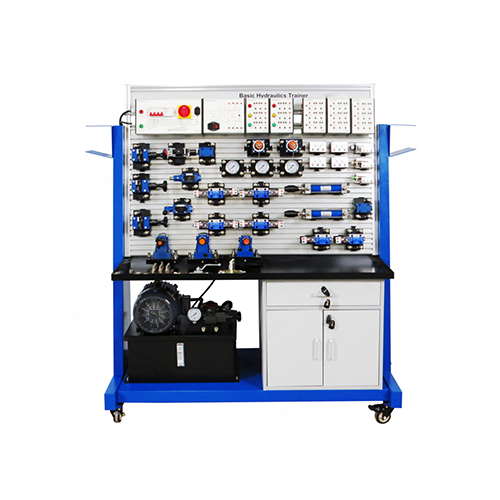

MR128M Basic Hydraulics Trainer Teaching Equipment Industrial Training Equipment Hydraulic Training Workbench
1. Product Introduction
1.1 Product Description
Through this trainer, students can master the structure of hydraulic components, hydraulic circuit control theory, hydraulic circuit design, and the hands-on ability of hydraulic trainers.
This trainer is flexible and students can design their own hydraulic circuits.
1.2 Product Features
Compatible with all commonly used hydraulic components: Each hydraulic component is equipped with a mounting plate, which can be easily and freely placed in the aluminum alloy hydraulic component on the panel (aluminum alloy structure with "T" groove on the panel). The oil ring adopts a quick-change joint; it is easy to disassemble and assemble, and there is no leakage. Through this set of practical training equipment, you can conduct hydraulic control circuits and their corresponding basic application experiments. They can also be integrated with each other for electro-hydraulic control experiments.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: three-phase five-wire AC 380V±10% 50Hz
2.2 Dimensions and weight
Dimensions: 1400mm×700mm×1650mm
Weight: <400kg
3. Product component names and function introduction
3.1 Product main body
No. Name
1 Frame
2 Hydraulic station
3 Cabinet
4 Universal wheel
3.2 Product electrical part
No. Name
1 Main power module
2 Inverter module
3 Button module
4 Relay module

3.3 Product accessories
No. Name
1 2mm safety connection cable
100CM Red
2 2mm safety connection cable
100CM Black
3 Oil pipe, 600mm
4 Oil pipe, 1000mm
5 Oil pipe, 1500mm
6 Extended hexagon wrench (9 pieces)
7 Power connection cable
8 Female connector
3.4 Introduction to Hydraulic Components
1. Double-acting Hydraulic Cylinder
2. Throttle Valve
3. Single-phase throttle valve
4. Direct-acting relief valve
5. Three-position four-way solenoid reversing valve with double electric control
6. Stroke valve
7. Two-position four-way manual reversing valve
8. Speed regulating valve
9. Pilot relief valve
10. Sequence valve (pilot type)
11. Hydraulic control check valve
12. Pressure reducing valve (pilot type)
13. Check valve
14. Pressure relay
15. Oil distributor block with pressure gauge
16. Capacitive sensor
17. Inductive sensor
18. Photoelectric sensor
19. Micro switch
20. Hydraulic station
21. Two-position four-way single-electric solenoid reversing valve
4. Product Configuration List
No. Name Quantity
1 Double-acting hydraulic cylinder 2
2 Throttle valve 2
3 Check throttle valve 2
4 Direct-acting relief valve 3
5 Three-position four-way solenoid directional valve (M) 1
6 Three-position four-way solenoid directional valve (O) 1
7 Three-position four-way solenoid directional valve (Y) 1
8 Three-position four-way solenoid directional valve (H) 1
9 Travel valve 1
10 Two-position four-way solenoid directional valve single solenoid control 2
11 Two-position four-way manual directional valve 1
12 Speed control valve 2
13 Pilot-operated relief valve 1
14 Sequence valve (pilot) 1
15 Hydraulic control check valve 2
16 Pressure reducing valve (pilot) 1
17 Check valve 1
18 Pressure relay 1
19 Three-way 6
20 Five-way 4
21 Glycerin pressure gauge 3
22 Hydraulic ball valve 1
23 Capacitive sensor 1
24 Inductive sensor 1
25 Photoelectric sensor 1
26 Micro switch 4
27 Gear pump hydraulic station 1
28 Main power module 1
29 Inverter module 1
30 Button module 1
31 Relay module 1
32 Hydraulic oil pipe 0.6m 6
33 Hydraulic oil pipe 1m 10
34 Hydraulic oil pipe 1.5m 2
5. Product teaching experiment list (see the experiment guide for details)
(1) Two-position four-way single-sole solenoid reversing valve experiment
(2) Three-position four-way double-sole solenoid reversing valve experiment
(3) Capacitive sensor experiment
(4) Pressure relay experiment
(5) Speed control valve experiment
(6) Throttle valve experiment
(7) Oil distribution valve block with pressure gauge experiment
(8) Travel valve experiment
(9) Hydraulic control check valve experiment
(10) Direct-acting relief valve experiment
(11) Two-position four-way manual reversing valve experiment
(12) Check valve experiment
(13) Pilot relief valve experiment
(14) Pilot pressure reducing valve experiment
(15) Sequence valve experiment
(16) Switch ball valve experiment
