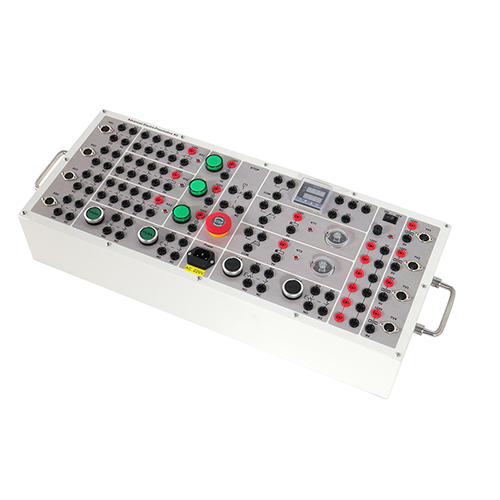

MR125M Advanced Electro-Pneumatics Kit Vocational Training Equipment Teaching Model Mechatronics Trainer I.Product Overview 1.1 Product Description The equipment consists of an intermediate relay, a 24V indicator light load, an emergency stop switch, a counter, a delayed closing, a delayed disconnection, a 24V power output, an electromagnetic coil, a travel switch coil, a self-locking and self-resetting button, etc. It is suitable for experiments with other equipment and can help experimenters understand electrical equipment. 1.2 Product Features 1. High reliability and durability. 2. Avoid overload use. 3. Multiple configurations to adapt to different circuit requirements. 4. High isolation to ensure circuit safety. 5. Fast response to reduce control delay. 6. Easy to operate and quick response. 7. Stable structure, suitable for occasions with frequent operation. 8. Low power consumption, suitable for long-term operation. 9. High-precision counting, suitable for precise control. 10. Multiple counting modes to adapt to different counting needs. 11. Accurate delay control, suitable for automatic control. 12. Multiple delay settings to adapt to different application requirements. 13. Easy to operate and convenient to set delay. 14. High stability, suitable for various loads. II.Performance Parameter 2.1 Technical Parameters Input power: Single phase, three wires, AC220V, 50Hz 2.2 Dimensions and Weight Dimensions: 800mm×280mm×190mm Weight: <50kg III.Product component names and function introduction 3.1 Product main part No. Name 1 Travel switch terminal 2 Intermediate relay 3 24V indicator light load 4 Emergency stop switch 5 Counter 6 24V output power supply 7 Solenoid valve coil 8 Self-reset button 9 Power interface 10 Self-locking button 11 Delay disconnect switch 12 Delay open switch 3.2 Product accessories No. Name 1 Inductive proximity sensor 2 Capacitive proximity sensor 3 Pilot-operated single-way flow control valve 4 Three-core British power plug 5 Trachea 6 Trachea scissors 7 Trachea plug 8 Straight joint 9 Pneumatic T connector joint 10 4mm electrical cable (red) 11 4mm electrical cable (black) 12 Fuse 13 DIN socket (3P) 14 DIN socket (4P) 15 U disk IV.Product Configuration List No. Name Quantity 1 Travel switch terminal 4 2 Intermediate relay 3 3 Self-reset button 2 4 Self-locking button 2 5 24V indicator light load 3 6 Emergency stop switch 1 7 Counter 1 8 Delayed opening switch 1 9 Delayed disconnection switch 1 10 24V output power supply 6 11 Solenoid valve coil 4 12 Electric valve group 1 13 Inductive proximity sensor 1 14 Capacitive proximity sensor 1 15 Pilot-operated single-way flow control valve 2 16 Three-core British power plug 1 17 Trachea 50m 18 Trachea scissors 1 19 Trachea plug 10 20 Trachea joint 5 21 Pneumatic T connector joint 5 22 4mm electrical cable (red) 20 23 4mm electrical cable (black) 20 24 Fuse 5 25 DIN socket (3P) 4 26 DIN socket (4P) 4 27 U disk 1 V.Experiment list Experiment 1 Intermediate relay test Experiment 2 Delayed connection test Experiment 3 Delayed disconnection test Experiment 4 Equipment test experiment
