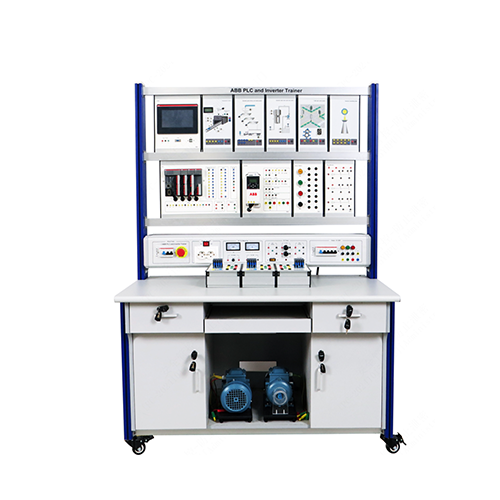

MR514E ABB PLC and Inverter Trainer Vocational Training Equipment Classroom Training Set Electrical Workbench 1. Product Introduction 1.1 Product Description This training platform includes ABB PLC, training simulation module and other control objects. Through relevant experiments, students can be familiar with the basic use of ABB PLC, programming methods, programming software, etc., and cultivate corresponding knowledge and skills. It is suitable for teaching and skill training assessment of relevant majors in higher vocational colleges, technical secondary schools and technical schools. 1.2 Product Features (1) The training platform adopts an aluminum profile column frame structure. The measuring instrument and training power supply are built-in integrated installation. The training circuit and device are combined in a hanging box. The unit combination is flexible, easy to use and not easy to damage. (2) The experimental circuit and device are fully equipped and can be used in combination to complete the training content of various courses. (3) The training platform has a good safety protection system. 2. Technical specifications 2.1 Technical parameters Power supply parameters: three-phase five-system AC380V±10% 50Hz Working environment requirements: ambient temperature -10℃～+40℃ Relative humidity <85% (25℃) 2.2 Dimensions and weight Dimensions: 1220mm×710mm×1820mm Weight: 158kg 3. Product component names and function introduction 3.1 Product main part No. Name 1 Touch screen module 2 Temperature control module 3 Automatic feeding and loading module 4 Water tower water level control module 5 Traffic light module 6 Sky Tower Light module 7 ABB PLC module 8 ABB inverter module 9 Button module 10 Relay module 11 AC contactor module 12 Power box 13 Motor 14 Cabinet 15 Universal wheel 3.2 Product electrical part No. Name 1 AC 220V power circuit breaker 2 Emergency stop button 3 Output power switch 4 Socket 5 DC ammeter 6 DC voltmeter 7 DC power supply 8 AC 380V power supply 3.3 Product accessories No. Name 1 2mm safety electrical cable 100CM yellow 2 2mm safety electrical cable 100CM green 3 2mm safety electrical cable 100CM red 4 2mm safety electrical cable 100CM blue 5 2mm safety electrical cable 100CM black 6 4mm safety electrical cable 1m double-ended yellow 7 4mm safety electrical cable 1m double-ended green 8 4mm safety electrical cable 1m double-ended red 9 4mm safety electrical cable 1m double-ended blue 10 4mm safety electrical cable 1m double-ended double-colored 11 4mm safety electrical cable 1m double-ended black 12 Network cable 1.5m 13 Fuse 5A 5*20 14 Fuse 30mA 5*20 15 U disk 16 Communication cable 4. Product Configuration List No. Name Qty 1 Touch screen module 1 2 Temperature control module 1 3 Automatic feeding and loading module 1 4 Water tower water level control module 1 5 Traffic light module 1 6 Sky Tower Light module 1 7 ABB PLC module 1 8 ABB inverter module 1 9 Button module 1 10 Relay module 1 11 AC contactor module 3 12 Motor 2 13 2mm safety electrical cable 100CM yellow 10 14 2mm safety electrical cable 100CM green 10 15 2mm safety electrical cable 100CM red 5 16 2mm safety electrical cable 100CM blue 2 17 2mm safety electrical cable 100CM black 5 18 4mm safety electrical 1 meter double-ended yellow 3 19 4mm safety electrical 1 meter double-ended green 3 20 4mm safety electrical 1 meter double-ended red 6 21 4mm safety electrical 1 meter double-ended blue 2 22 4mm safety electrical 1 meter double-ended double-colored 2 23 4mm safety electrical 1 meter double-ended black 1 24 Network cable 1.5 meters 1 25 Fuse 5A 5*20 5 26 Fuse 30mA 5*20 5 27 U disk 1 28 Communication cable 1 5. Product teaching experiment list (see the experiment guide for details) (1) Start-stop circuit experiment (2) Light of the sky tower experiment (3) Automatic feeding and loading experiment (4) Traffic light experiment (5) Water tower water level control experiment (6) Temperature control experiment (7) Inverter control experiment
